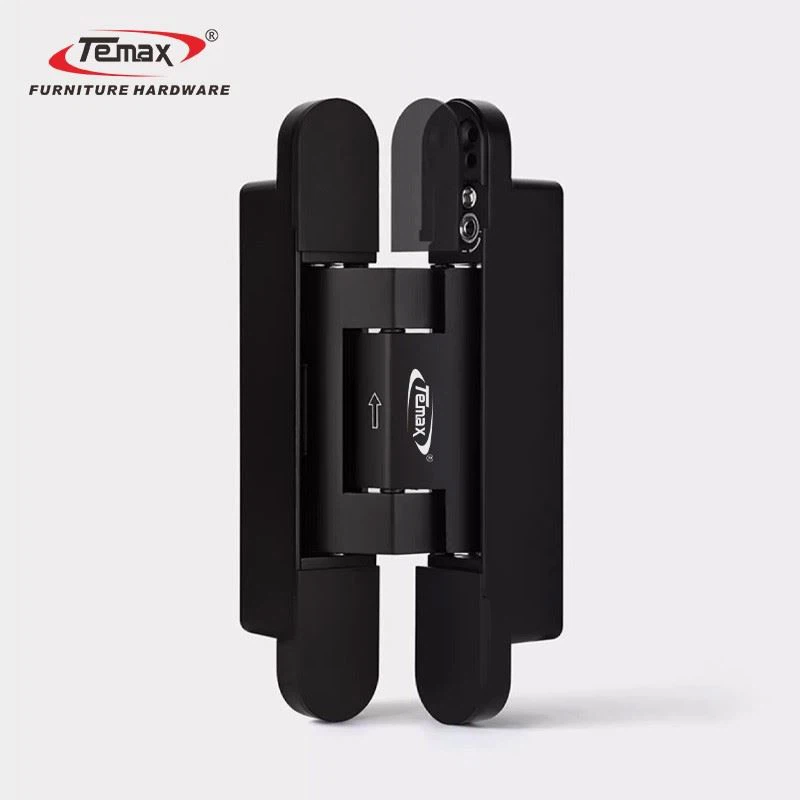

Temax Dark Cross Hydraulic Door Hinge HBG005
1.Dark Cross Hydraulic Door Hinge: Ensures smooth, quiet door closing, preventing slamming and protecting furniture. 2.2D Adjustment: Allows easy adjustment in two directions for precise installation and alignment. 3.Adjustable Closing Speed: Customize the soft-close speed to fit your preference. 4.Concealed Hinge: Hidden design for a clean, modern look.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Shanghai Temax Hardware Co., Ltd. is one of the leading manufacturers and suppliers of temax dark cross hydraulic door hinge hbg005 in China. Please feel free to wholesale bulk cheap products for sale here from our factory. All customized products are with high quality and competitive price.
Temax Dark Cross Hydraulic Door Hinge HBG005
| Brand Name | TEMAX |
| Products model | HBG005 |
| Products material | Zinc Alloy |
| Product Name | Dark Cross Hydraulic Door Hinge |
| Type | Door Hinge |
| Color | Black |
| Bearing | 30-90KG/40-100KG |
| Door Height | <=2100mm |
| weight | 1200g |
Selling Point

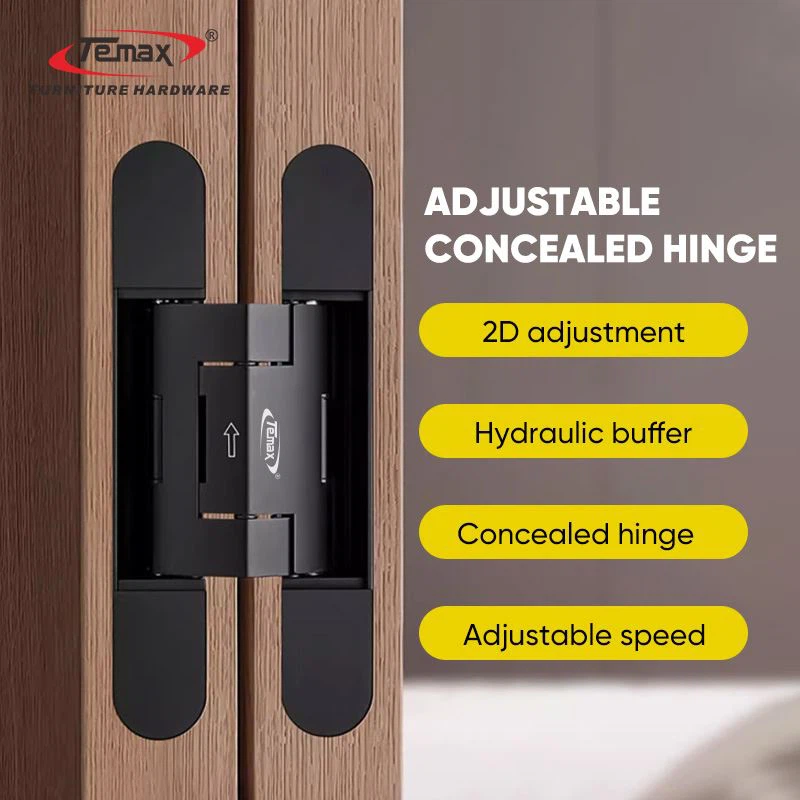

Dark Cross Hydraulic Door Hinge
The advanced hydraulic system allows for smooth and silent closing of doors, reducing noise and preventing slamming. This ensures long-lasting durability while protecting your furniture from wear and tear.

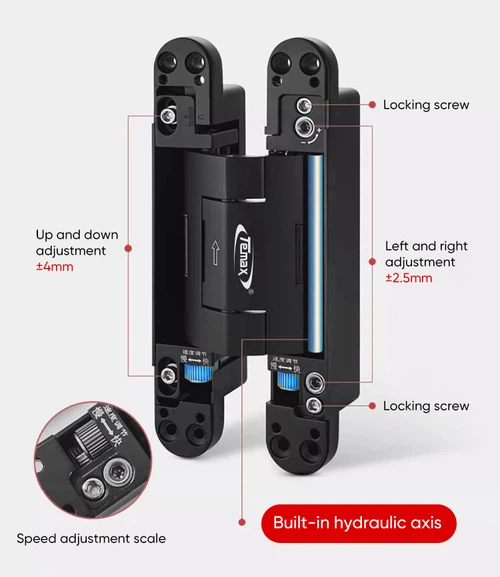

2D Adjustable Design
The hydraulic Door hinge comes with a 2D adjustment function, making installation and alignment easy and precise. You can adjust both the height and depth of the hinge, ensuring a perfect fit every time.

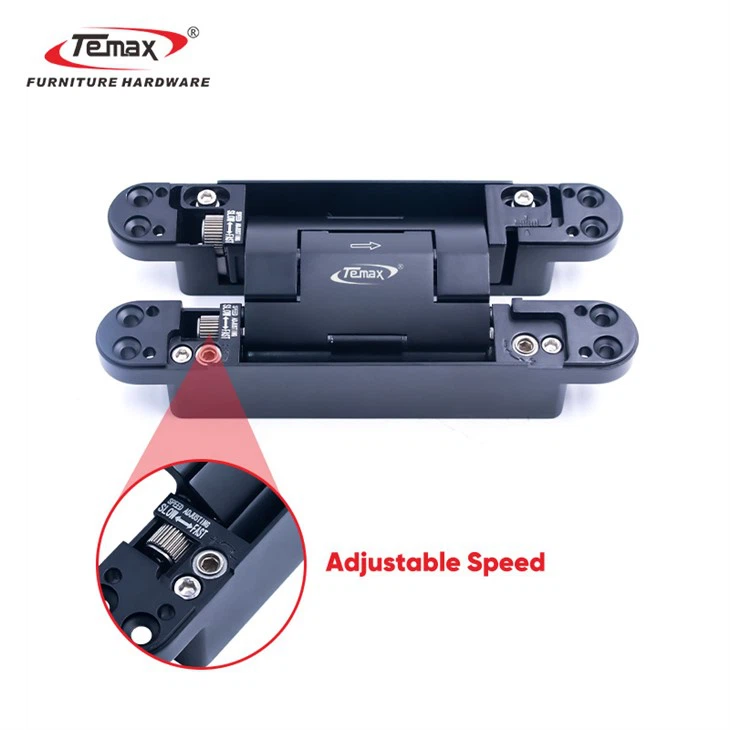

Adjustable Buffer Speed
The hinge allows for the fine-tuning of the soft-close buffer speed. Whether you prefer a quicker or slower close, you can easily adjust it to suit your needs, adding flexibility to your cabinet or door system.

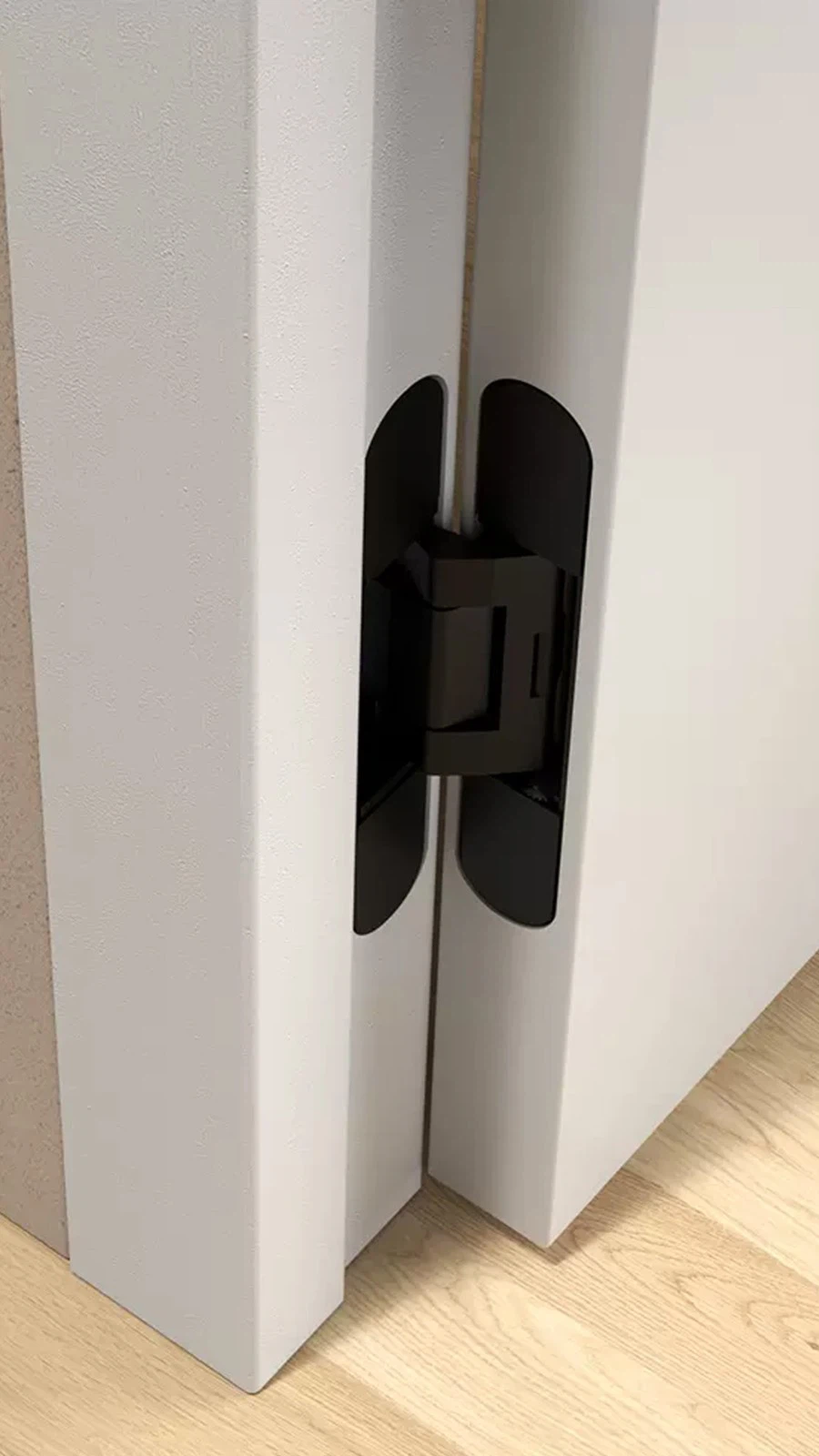

Concealed Hinge for a Sleek Look
With a hidden hinge design, the Temax Dark Cross Hydraulic Hinge keeps unsightly hardware out of view, giving your furniture a modern and streamlined appearance.

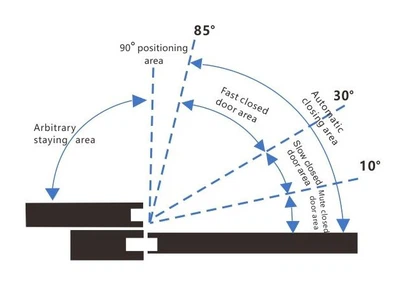

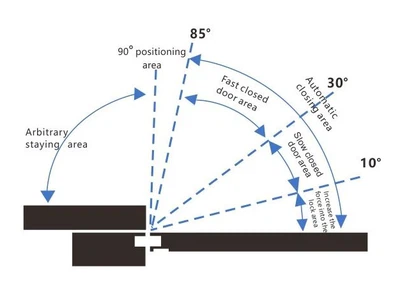

Product function and Angle
1. The automatic door closing Angle of this product is 0°- 85°, and the arbitrary staying area is 90°- 180°.
2. Set the stop door positioning function at 90*, soft positioning, no need to install door stopper.
2. Set the stop door positioning function at 90*, soft positioning, no need to install door stopper.
4. (Entry lock type hinge) 30° - 10° slow closing the door, 10°- 0° fast closing and locking.
5. (Mute type hinge) 30°- 10° slow closing the door, 10° - 0° mute closing.
Two sizes available

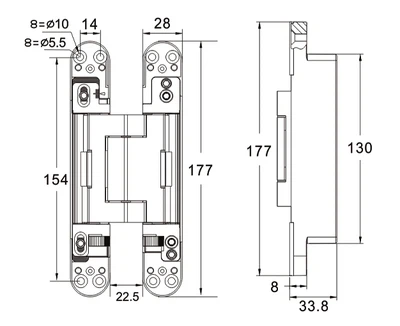

177 Hydraulic Door hinge
| Door weight (KG) | Door height (MM) | Recommended number of hinges to use(PCS) |
| ≤30KG | ≤2100mm | 1PCS Hydraulic hinge+1 PCS Load bearing hinge |
| ≤50KG | ≤2100mm | 2PCS Hydraulic hinge |
| ≤70KG | ≤2100mm | 2PCS Hydraulic hinge+1 PCS Load bearing hinge |
| ≤90KG | ≤2100mm | 3PCS Hydraulic hinge |
| Tips: The door weight is less than 70KG, the door height is more than 2100mm,it is recommended to add a load-bearing hinge | ||

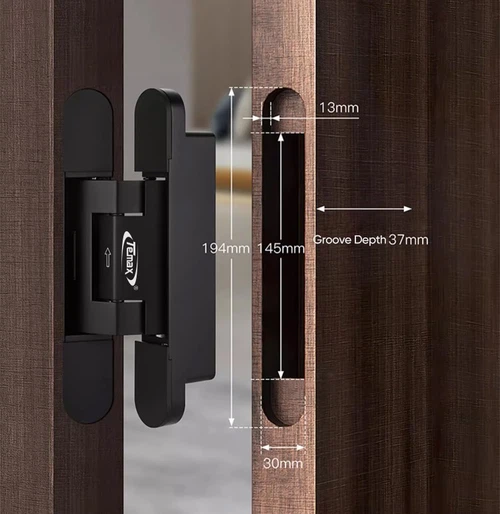

194 Hydraulic Door hinge
| Door weight (KG) | Door height (MM) | Recommended number of hinges to use(PCS) |
| ≤40KG | ≤2100mm | 1PCS Hydraulic hinge+1 PCS Load bearing hinge |
| ≤60KG | ≤2100mm | 2PCS Hydraulic hinge |
| ≤80KG | ≤2100mm | 2PCS Hydraulic hinge+1 PCS Load bearing hinge |
| ≤100KG | ≤2100mm | 3PCS Hydraulic hinge |
| Tips: The door weight is less than 70KG, the door height is more than 2100mm,it is recommended to add a load-bearing hinge | ||
Different colors available

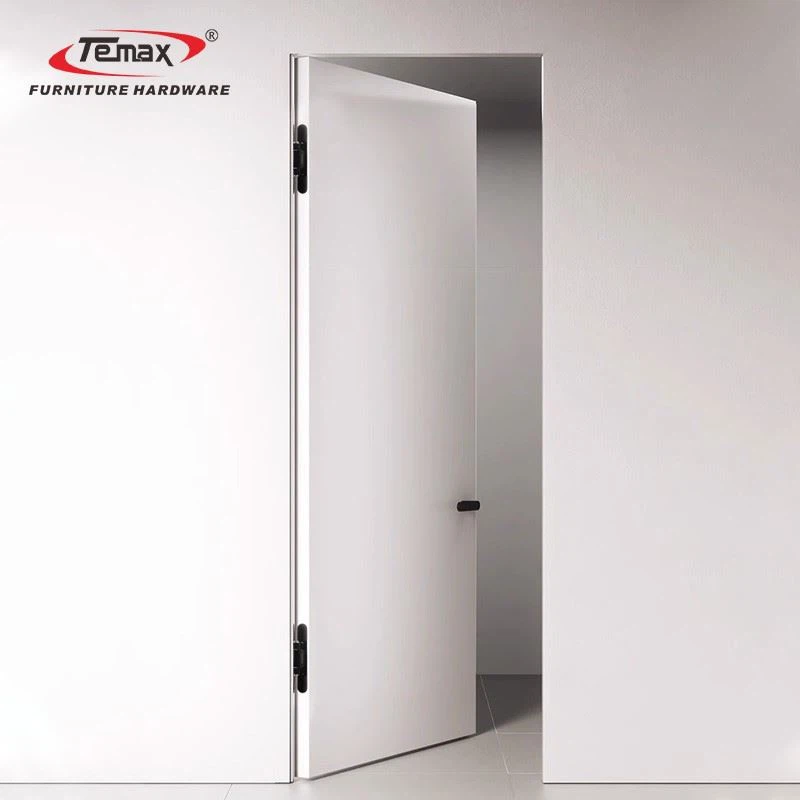

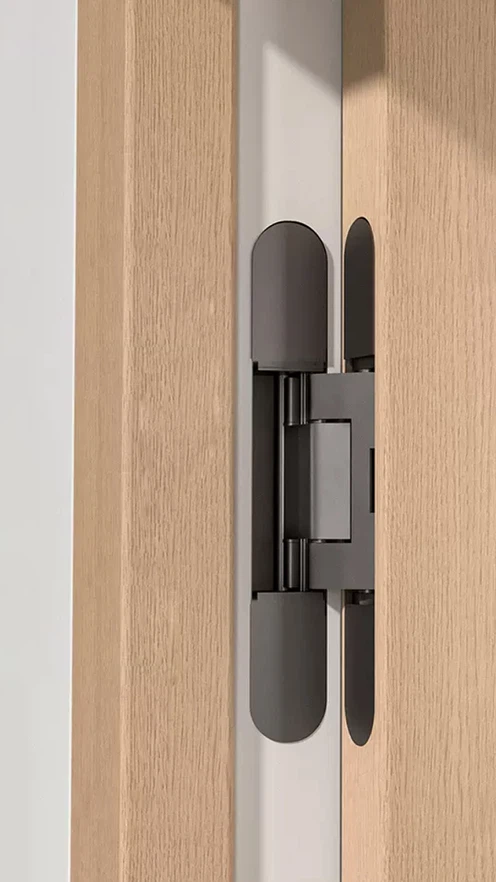

Usage Scenarios
we are here for you
People Also Ask
What's your after-sale service?
Three years guarantee. Any quality problem, just please show us the pictures and video related. We will supply you a solution
Do you provide sample?
Yes. We can provide you sample to test, the sample cost shall be paid if you want.
What is the MOQ?
The minimum order is 20 sets for two people. If you need other quantities, please contact me for consultation.
