Drawer Slide

TEMAX as a drawer slide Supplier. We focus on providing high-quality drawer slides. We can not only provide you with SGS test reports, but also provide a reasonable number of free samples. TEMAX is our own brand, but at the same time we can provide professional OEM services , customize products for you according to your needs, including using your own Logo. We are committed to providing customers with one-stop solutions and provide a variety of drawer slides to make your shopping worry-free. You can learn more about our products and contact us at any time if you have any questions.

First 123 Last 1/3

What is Drawer slide ?





Drawer slides, also known as drawer glides or runners, are the mechanisms that allow drawers to open and close smoothly. They are mounted on the sides, bottom, or even underneath the drawer, depending on the slide type.

01/

Side-mount drawer slides(Ball bearing slide): this drawer slide is mounted on the side of the drawer and is among the most popular types of mounts. To ensure smooth movement, the side mount requires ample side on the sides between the drawer side and cabinet wall.

02/

Under-mount drawer slides: This more advanced and fully concealed mount is positioned under the drawer, helping to create a sleek look and a quieter operation. Because it needs more space at the back of the slide, the under-mount drawer slide is usually an inch shorter.

03/

Bottom-mount drawer slides:These slides are similar to under-mounts because you'll find them underneath the drawer. If you prefer light to medium-duty applications, this drawer slide may be the ideal option for you and they offer minimal side clearance.

04/

Tandem box

this drawer slide not only includes the slides, also have two pcs of metal side panel. Later, ultra-thin side panels, glass side panels and LED side panels were also derived.
Drawer slides come in various sizes and styles, but they all have the same basic components.



What are advantages of  Drawer slide?

smooth drawer operation

This mechanisms that allow drawers to open and close smoothly. Soft close slides catche the drawer as it closes and gently eases it into place. This innovative technology ensure a smooth and silent closure of your cabinet drawers. This stops them from slamming shut and protects both the drawer and its contents from damage.

advanced look

They provide a clean, sleek look and offer excellent support for heavy loads. These qualities make them suitable for storing a variety of items.
They’re quite popular in high-end kitchens and bathrooms.
Their concealed design also makes cleaning easier, as there are no visible tracks or hardware to collect dust and debris.

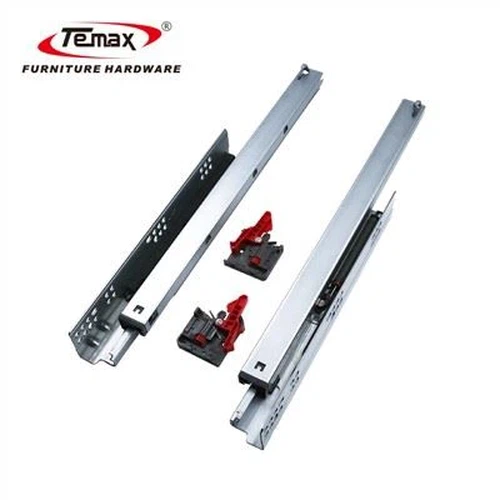

3-fold-undermount-soft-close-concealed-drawer28352562551

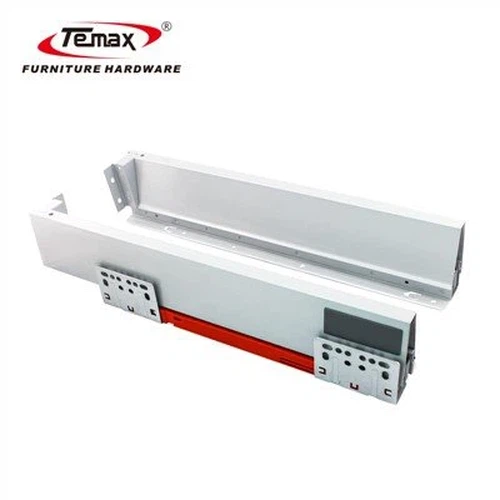

metal-box-drawe-slide43543159413

multipy choice

A comprehensive and wide range of varieties for you to choose from, soft closing models, push open models, and soft closing plus push open models. Complete size 250-550mm long, 16/18mm side panels, pin type and adjustable bracket type (1D, 2D 3D)

High quality

The partial extension usually is 25-30kg capacity, the full extension usually is 30-35kg capacity. Our best drawer slide has 40kg capacity and 80,000cycle times. SGS testing report is available.

Types of drawer slide




Soft Close Drawer Slides

These slides ensure your cabinet drawers close smoothly and quietly. This prevents the drawer from slamming shut and protects the drawer and its contents from damage.
Soft-closing slides are equipped with hydraulic dampers or spring mechanisms. It grabs the drawer when it's closed and gently pushes it into place. This innovative technology not only reduces noise but also extends the life of the cabinet by minimizing wear and tear.



push open drawer slide

Push-open slides do not require the user to open the drawer. Instead, users simply push the drawer in a certain direction to open it. These slides are more expensive than other slide types, but they offer a more modern look and smoother operation for handle-free use scenarios



Undermount Drawer Slides

These slides are mounted underneath the drawer box and are hidden when the drawer is open. This creates a seamless, clean look. They have a clean, stylish look and provide excellent support for heavy loads. These qualities make them suitable for storing a variety of items. Its concealed design also makes cleaning easier since there are no visible tracks or hardware to collect dust and debris.



side mount drawer slide

These slides are mounted on the sides of the drawer. They are usually made of metal and have a pair of tracks on which the drawers slide. Side-mounted slides are generally less expensive than other types of slides, but are also less durable and are suitable for use on lightweight, small drawers.



metal box slide

This type is different from the undermount drawer slide. It adds two metal side panels to the slide, so that your drawer no longer needs to use wooden side boards. This type is divided into square side panels and slim panels



ultra-slim metal box slide

This type of ultra-slim metal box is an upgrade from the ordinary slim metal box. The side panels are only 1.2mm thick, further improving the utilization of drawer space.And you can buy the side panel seperately.

Material of  drawer slide



45mm-full-extension-slides-self-close-inter8cac843d-32ee-44d8-81fd-246e87296fd0

Metal Drawer Slides

Metal drawer slides are one of the most popular choices due to their durability and strength. They run smoothly and quietly, making them ideal for a variety of furniture types, from kitchen cabinets to office desks. The slide rails can withstand heavy loads and are ideal for storing items in drawers. They provide a seamless sliding experience with minimal noise and friction.

ball-bearing-drawer-slide53286276035

Plastic drawer slides

Plastic drawer slides are affordable and often cheaper than metal slides. Unlike metal, plastic won't rust or corrode, making it ideal for humid environments. But plastic slides have a lower load-bearing capacity, and they may not last as long as metal slides with heavy use.

kitchen-metal-box55011059165

Wooden drawer slides

Wood drawer slides, although less common these days, are often found in custom or handmade furniture, enhancing the rustic or classic look of the furniture and making them a great option for DIY enthusiasts making custom furniture. But wooden slides are best for light-duty applications and are prone to wear and tear

Specification of  drawer slide





MODEL EXTENSION WIDTH LENGTH CAPACITY THICKNESS
Ball bearng slide partial extension 30/35/42/45mm 250/300/350/400/450/500/550MM 25KG 0.8*0.8*0.9MM
full extension 30/35/42/45mm 250/300/350/400/450/500/550MM 30KG 1.0*1.0*1.2MM/1.2*1.2*1.5MM
MODEL EXTENSION ADJUSTMENT LENGTH CAPACITY THICKNESS
undermount drawer slide partial extension 1D/2D/3D 300/350/400/450/500/550MM 30KG 1.5*1.5mm
full extension 1D/2D/3D 300/350/400/450/500/550MM 35KG 1.0*1.5*1.8MM
MODEL HEIGHT LENGTH CAPACITY
BN-metal box 68MM 300/350/400/450/500/550MM 35KG
101MM 300/350/400/450/500/550MM 35KG
153MM 300/350/400/450/500/550MM 35KG
183MM 300/350/400/450/500/550MM 35KG
BT-metal box 68MM 300/350/400/450/500/550MM 35KG
101MM 300/350/400/450/500/550MM 35KG
148MM 300/350/400/450/500/550MM 35KG
183MM 300/350/400/450/500/550MM 35KG



Application of  drawer slide

self-close-inter-lock-ball-bearing-slideab56f

Kitchen

The kitchen is one of the most commonly used places, the types of slides can be freely chosen according to the design and budget

slice-metal-box07251684212

bedroom

Bedside tables in bedrooms are usually smaller, light ball bearing slide is good choice.

soft-close-and-push-open-concealed-slide52060763107

office

Office drawers are usually smaller and can use lighter ball bearing slide or partial extension undermount drawer slide

two-fold-american-undermount-cabinet-drawer02024630655

villa

Villas have relatively high requirements for the appearance and design of furniture. undermount drawer slide or emtal box can be used to achieve hidden designs.

How to maintain  drawer slide ？





1. Material

You should choose suitable materiaL of your drawer slide in accordance with your usage scenario. For the bathroom, it's better to use stainless steel or aluminum type to prevent rusty.

2. durability

The durability of drawer slides depends on their materials and build quality. Metal rails, especially mounted rails, tend to be more durable than plastic rails. When evaluating durability, the drawer's intended use and surrounding environment must be considered.

3. Drawer Movement Direction

Consider how you want the drawer to move. Traditional slides allow for horizontal movement, but there are also slides designed for vertical or multi-directional movement. The direction can influence both the functionality and aesthetic of the drawer.

4. Extension Length

The extension length of the drawer slide determines how far the drawer can extend outward. Full-extension slides give you complete access to the contents of the drawer, while partial-extension slides hide part of the drawer inside the cabinet.

5. Weight and Size of the Drawer

The physical size and weight of your drawer will affect the type of slides you should choose. For example, heavier and deeper drawers may benefit from bottom-mounted or bottom-mounted slides for added support. Instead, shallow drawers may be best suited to under-counter rails to maximize space.

Components of drawer slide

drawer slide

A simple drawer slide consists of an inner member called a drawer that attaches to the side of a drawer box, and an outer (or cabinet) which attaches to the cabinet’s inner wall surface within the drawer opening. In this system only one of the slide members moves when opening the drawer.

soft closing or push open system

Ordinary slides do not have any special features, but now the soft closing type is becoming more and more popular. The push open type slide is suitable for handle-free application scenarios.

adjustable part

Slide usually have a place to adjust the fit between the slide and the drawer during installation. Some have adjustment pins built into the slide, which can only be 1D, and some have external plastic brackets, which are available in 1D, 2D and 3D.



Process of  drawer slide



prepare 3D mould design

01

material testing and size measuring



02

Deep drilling



03

surface treating



04

quality testing and checking



05

Compared with normal drawer slide, our this product





soft closing

Soft-closing slides are equipped with hydraulic dampers or spring mechanisms. It grabs the drawer when it's closed and gently pushes it into place. This innovative technology not only reduces noise but also extends the life of the cabinet by minimizing wear and tear.



push to open

Push-open slides do not require the user to pull the drawer. Instead, users simply push the drawer in a certain direction to open it. They offer a more modern look and smoother operation for handle-free use scenarios



synchronization

The upper and lower rails move together at the same time, allowing the drawer to slide more quietly and smoothly



FAQ

Q: Is it necessary to use undermount drawer slide?

A: Yes, undercounter drawer slides hide out of sight and look stylish. They also have high load capacity, and often have features such as soft-closing mechanisms.

Q: What are the different types of drawer slide extensions?

A: "The extension length of the drawer slide refers to how far the drawer can be pulled out. Main types include:
Partial extension: The drawer opens partially, leaving part of the contents inside the cabinet.
Fully extension: The drawer opens completely, allowing full access to its contents."

Q: Are all drawer slides the same?

A: drawer slides vary in design, functionality, and material. They can differ in terms of mount type，extension length, and special features. The choice of slide often depends on the specific requirements of the furniture piece and personal preferences.

Q: What is the difference between a drawer glide and a drawer slide?

A: Glides, with variations like ball-bearing and roller glides, offer a smooth and quiet operation, ideal for applications where noise reduction is crucial. On the other hand, slides, encompassing side-mount and undermount options, provide stability and are often preferred for heavy-duty applications.

Q: What are the drawer slides called?

A: Drawer slides, also known as drawer glides or runners, are the mechanisms that allow drawers to open and close smoothly. They are mounted on the sides, bottom, or even underneath the drawer, depending on the slide type. Drawer slides come in various sizes and styles, but they all have the same basic components.

Q: What is the easiest drawer slide to install?

A: Mounting location: Side mounted drawer slides are the most popular and easiest to install. Center mount and undermount are also options.

Q: What size of drawer slides do I need?

A: To determine the drawer slide length, start at the back of the box and measure to the front without including the drawer's face. Once you have the length, round the number down; for example, if the drawer is 20 ½ inches long, you will need to purchase 20-inch drawer slides

Q: What is the rule of thumb for drawer slides?

A: Choose the right under-mount slide for your custom cabinet: Some guidelines to follow for choosing the correct size include that the drawer box length should be equal to the drawer glide length and that Blum recommends choosing slides three inches less than the custom depth of your cabinet.

Q: Do drawer slides need to be full length of drawer?

A: For side-mount and center-mount slides, typically measure the distance from the front edge of the cabinet to the inside face of the cabinet back and then subtract 1". For undermount slides, measure the drawer length.聽Slides must be the same length as drawer to work properly.

Q: How much gap do you leave for drawer slides?

A: Most side-mount slides require 1/2” to 17/32” of clearance on each side of a drawer. That means each drawer should be 1” to 1-1/16” smaller than the opening to fit properly.

Q: Do drawer slides go on top middle or bottom?

A: It all depends on how tall the drawer sides. The taller the side means you will want to mount the slide more in the middle. On shorter h drawers you can mount them middle or at the bottom and it will work fine.

Q: Where should drawer slides be positioned?

A: Our years of experience and thorough product testing have found that the ideal position is between a third and two-thirds distance from the base of the drawer, just below the centre line.

Q: Why use undermount drawer slides?

A: Undermount Drawer Slides offer a sleek, contemporary appearance with concealed hardware, smooth and silent operation, full drawer extension, and increased weight capacity. They are well-suited for modern designs, kitchens, and projects where aesthetics and premium performance are paramount.

Q: What are the disadvantages of undermount drawer slides?

A: Higher cost: Undermounts can be more expensive than side mount options.
Complex installation: Precise installation is essential for undermount slides.
Reduced compatibility: Undermount slides may only be compatible with some cabinet designs.

Q: Are ball bearing drawer slides better?

A: The benefits of using ball bearing drawer slides include their durability, smooth operation, ease of installation, variety of options, and ability to improve the aesthetics of your cabinets

Q: What are the disadvantages of ball bearing drawer slides?

A: They are typically more expensive than other types of slides, and they can be prone to failure if they are overloaded or misused. Additionally, they require regular maintenance to ensure that the ball bearings remain lubricated and functional.

Q: What is the problem with soft close drawer slides?

A: A common issue with soft close drawers is the dirt and debris that get stuck within the slides. Check for particles in the slides and wipe them clean with a wet cloth before drying. You can also use pressurized air to clean the slides.

Q: What are the disadvantages of soft close drawer runners?

A: Soft close drawer slides are typically more expensive than traditional slides, making them a less budget-friendly option. While they offer benefits, the additional cost may be prohibitive for some homeowners. Soft close drawer slides may malfunction over time, leading to noisy and uneven closing.

Q: What is the difference between self-closing and soft-closing drawer slides?

A: A self-close slide uses a spring mechanism to close a drawer, pulling it shut quickly once the spring is engaged. Easy-close slides meanwhile, have a damper mechanism in addition to a spring, pulling the drawer shut gently and quietly

Q: What is the push to open drawer slide mechanism?

A: Push to open drawer slides work by using a spring-loaded mechanism. When the front of the drawer is pushed, the springs are activated, sliding the drawer out. This self-closing mechanism keeps the drawer shut until it is pushed again.

Q: How do push openers work?

A: A gentle press on the door is all it takes for the Push to open piston to move the door into a position that easily lets you get your fingers behind to open it.

Q: What is the difference between soft closing and push open?

A: Soft-Close slides are renowned for their sleek and controlled closing motion, contributing to a refined and polished appearance. On the other hand, Push-to-Open technology embraces a handle-free design, promoting a minimalist and contemporary look.

Shanghai Temax Hardware Co., Ltd. is one of the most professional drawer slide manufacturers and suppliers in China, featured by quality products and competitive price. Please rest assured to wholesale or buy bulk discount drawer slide for sale here from our factory. Contact us for customized service.
