Temax Magic Sliding Door Hardware TM036
video

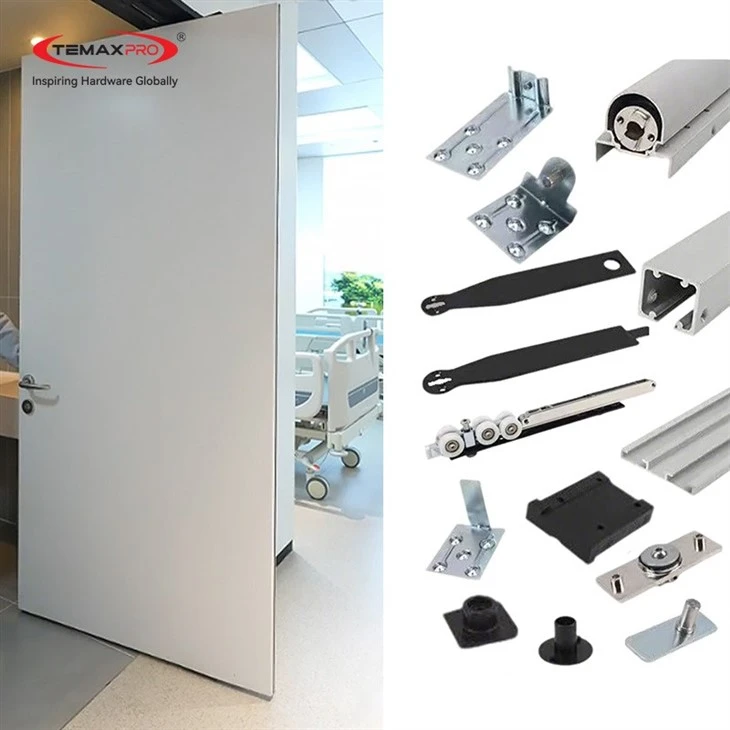

Temax Magic Sliding Door Hardware TM036

Temax Magic Sliding Door Hardware TM036

TEMAX Magic Sliding Door Hardware features a concealed track design for a clean, modern look. With smooth sliding and soft-close operation, this space-saving system brings quiet convenience and minimalist style to interior wooden doors.MOQ：10SETS

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Shanghai Temax Hardware Co., Ltd. is one of the leading manufacturers and suppliers of temax magic sliding door hardware tm036 in China. Please feel free to wholesale bulk cheap products for sale here from our factory. All customized products are with high quality and competitive price.

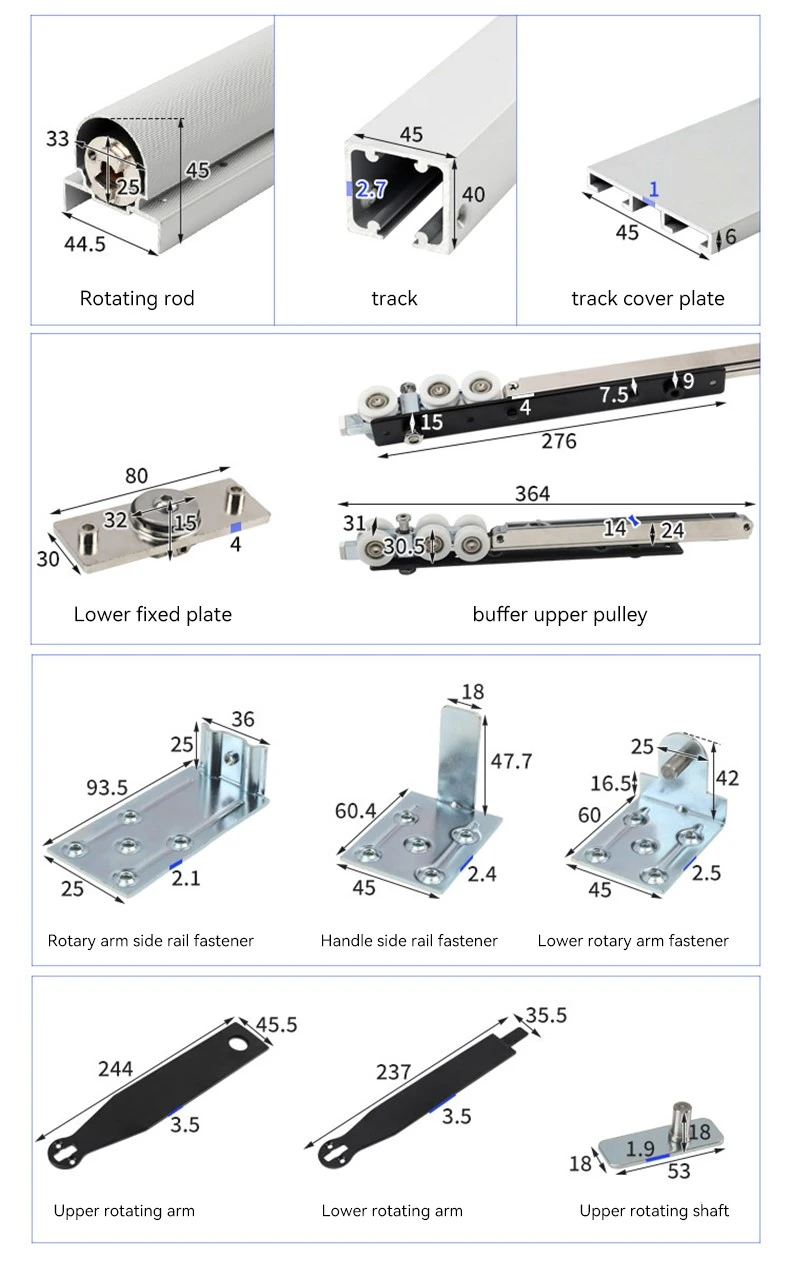

Temax Magic Sliding Door Hardware TM036



Brand Name

Temax

Model Number

TM036

Type

sliding door roller

Product Name

magic sliding door hardware

Material

Aluminum+Steel Stain

Size

Suitable for 850–1100mmdoor

Service

OEM Customized Services

Finish

Paint+Brush

Load capacity

70kg

Packing

1set/inner Box

Adjustment

up and down. left and right

Usage

Single wooden sliding door



Temax Magic Sliding Door Hardware





01.Minimizing door boundaries to maintain a seamless wall aesthetic

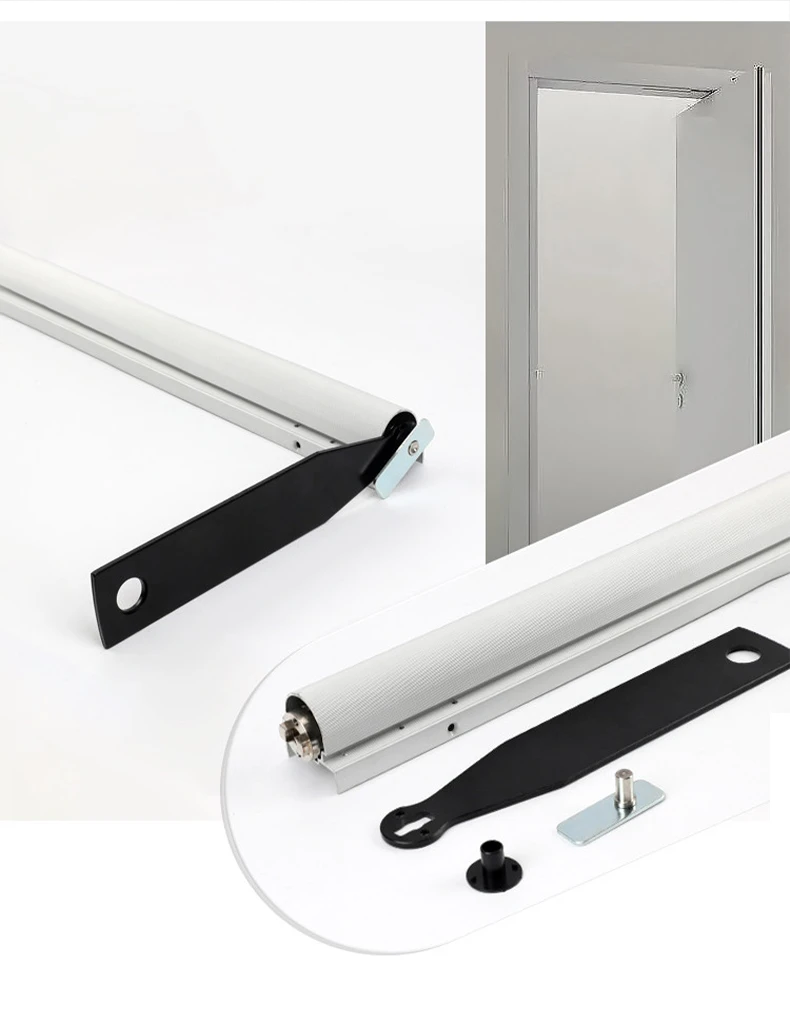

Temax Magic Sliding Door Hardware system fully conceals the track and pivot hardware, allowing the visual focus to remain on the door panel material and wall design. When paired with matching wood finishes, it minimizes visual clutter caused by exposed hardware, creating a clean, unified look for modern residences, offices, and commercial spaces.



Temax Magic Sliding Door Hardware



02.Aligned with natural movement for effortless access

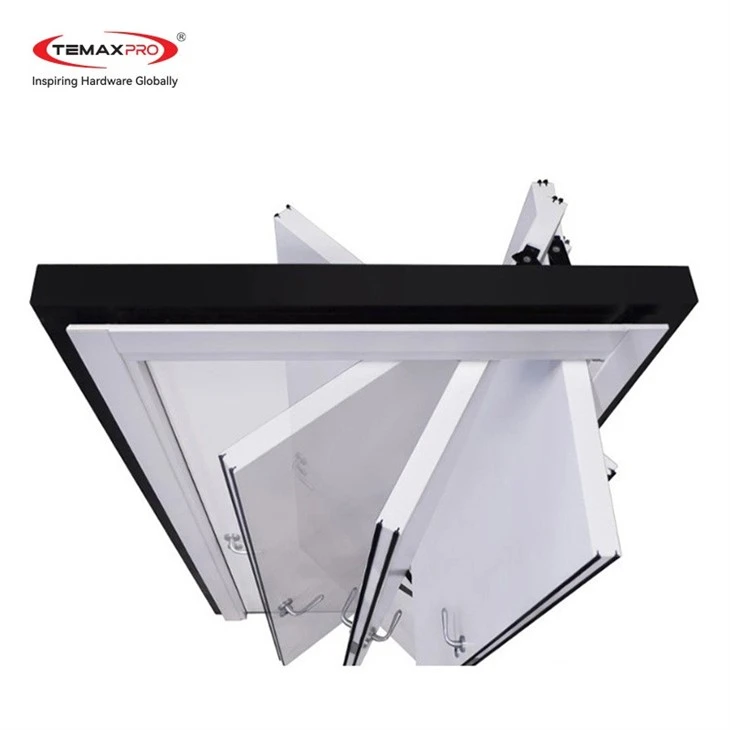

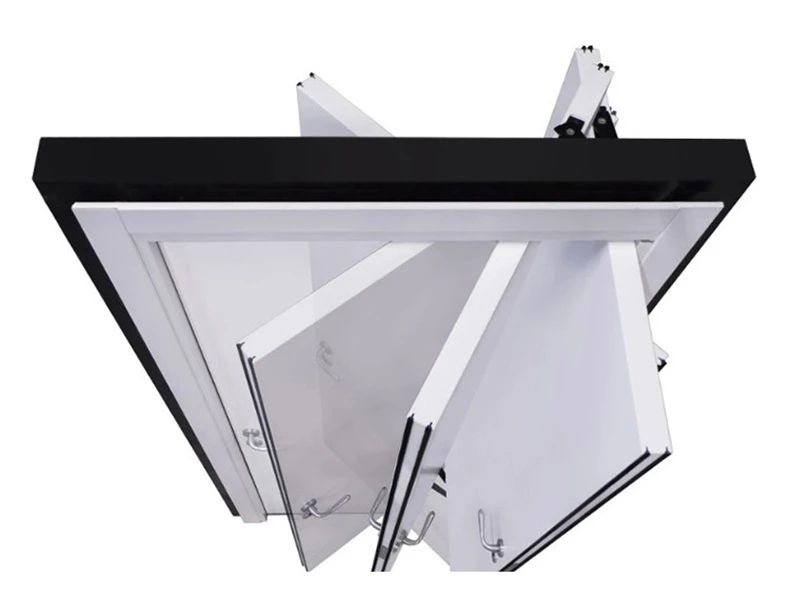

Combining rotation and sliding motions, the Sliding door roller supports 180° bidirectional opening, offering users greater flexibility when passing through from either side. It accommodates door widths of 850–1100mm and heights up to 2135mm, providing versatile options for spatial circulation planning.



Temax Magic Sliding Door Hardware



03.Prioritizing user experience-from tactile feel to precise gap alignment

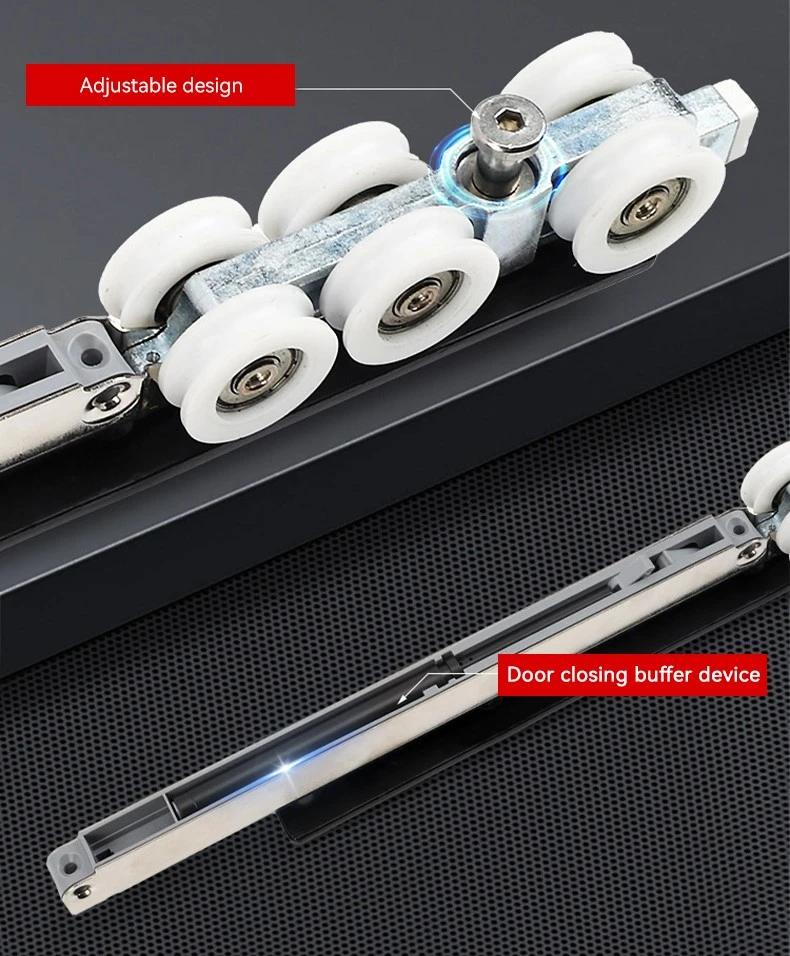

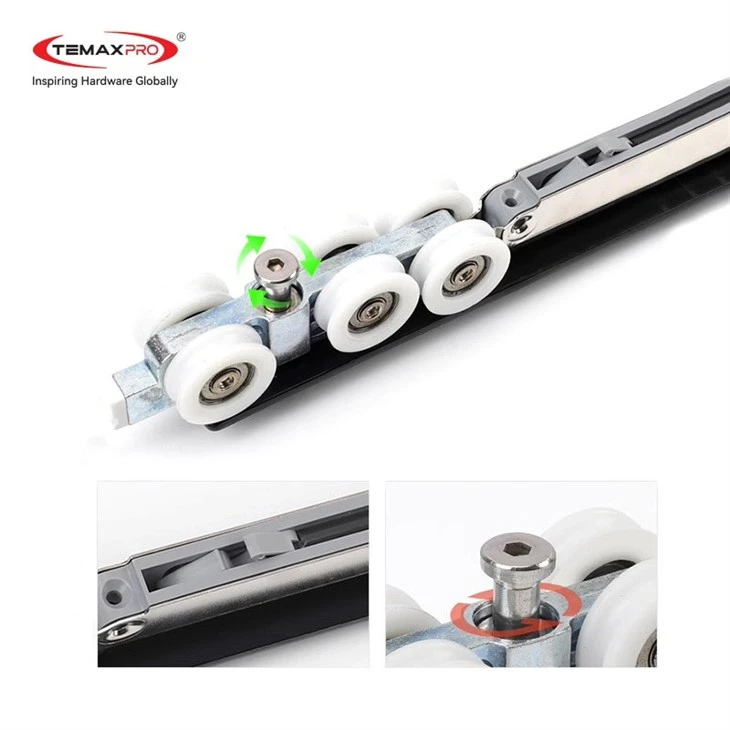

Temax Magic Sliding Door Hardware An integrated hydraulic soft-close mechanism and wear-resistant, silent rollers dampen impact and noise during movement, ensuring a smooth, gentle operation. Multi-dimensional adjustment capabilities during installation allow for precise alignment of verticality and gaps, balancing operational smoothness with a neat, polished appearance.



Temax Magic Sliding Door Hardware

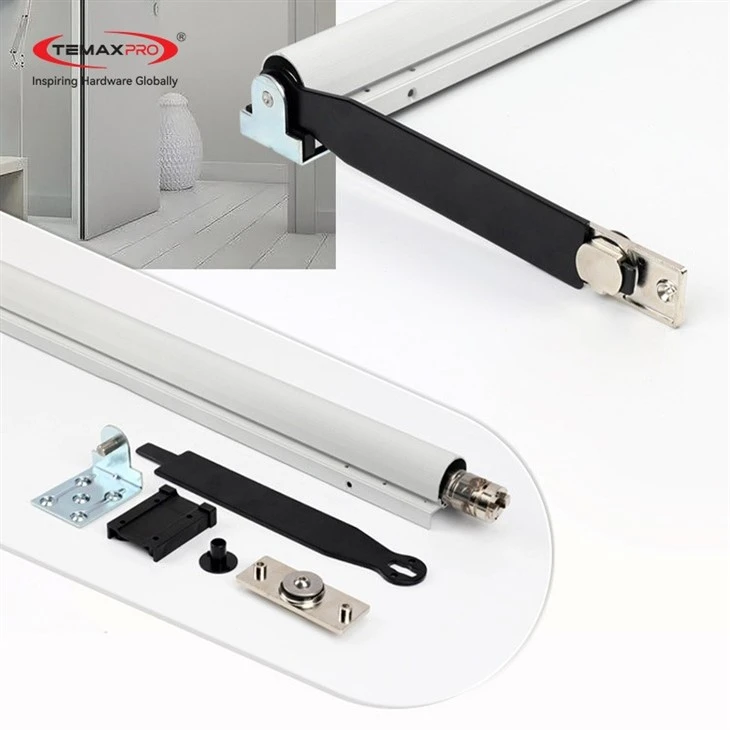

04.Reliable support for heavy wooden doors

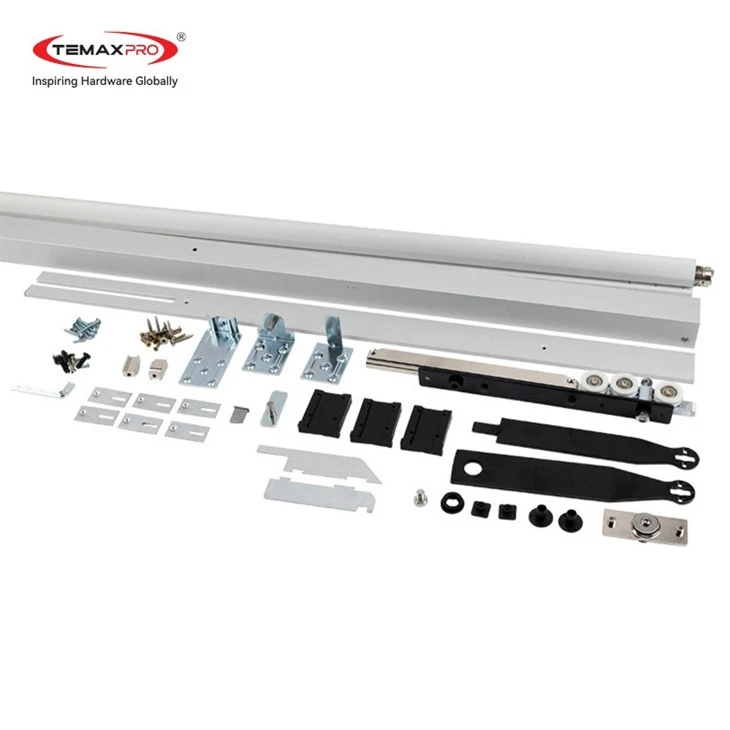

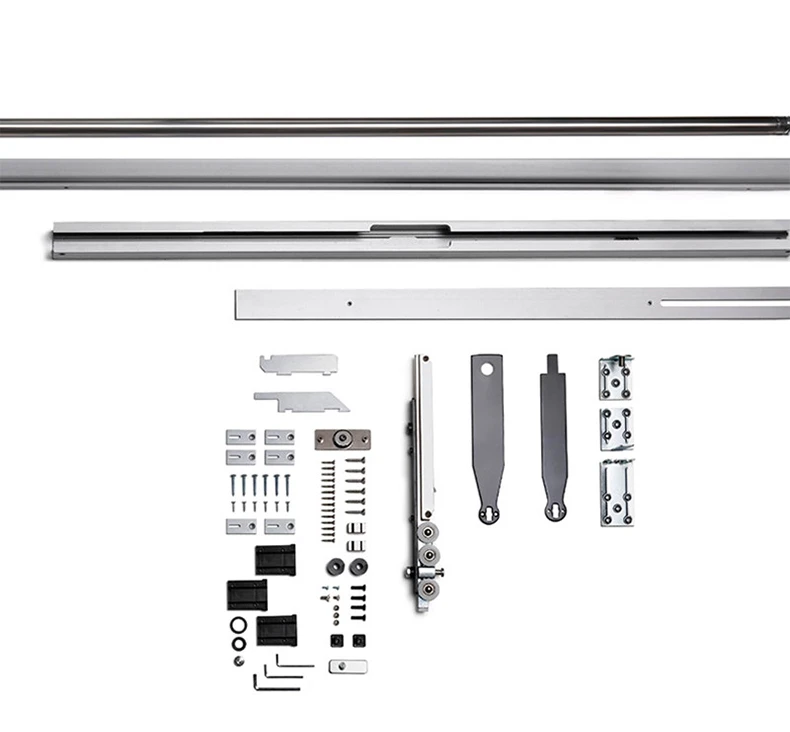

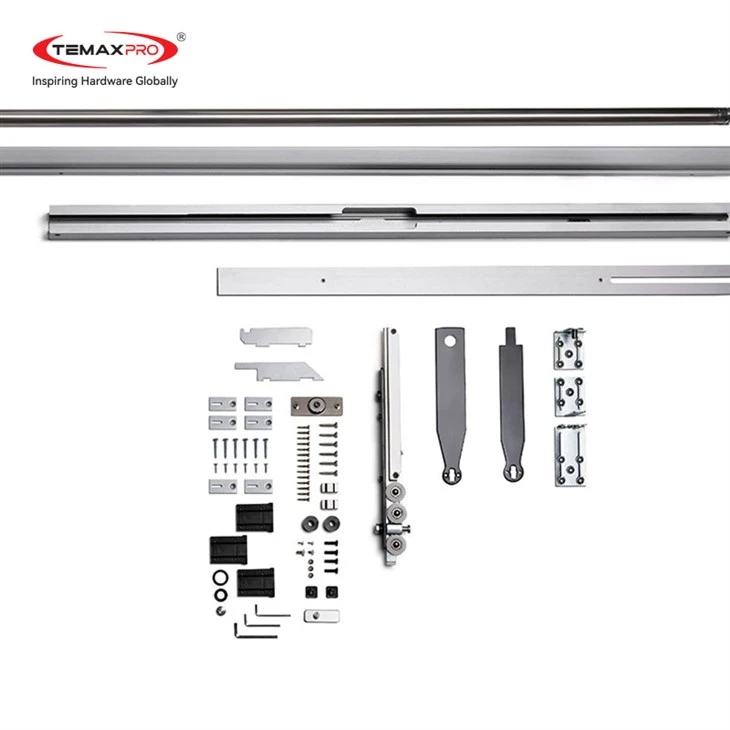

The thickened alloy pivot assembly supports loads of up to 70kg and enhances resistance against door sagging, making it suitable for solid wood or veneered wooden doors with a minimum thickness of 35mm. The system comes with standard tracks, cover plates, and pivot sleeves, simplifying project specification and on-site installation.

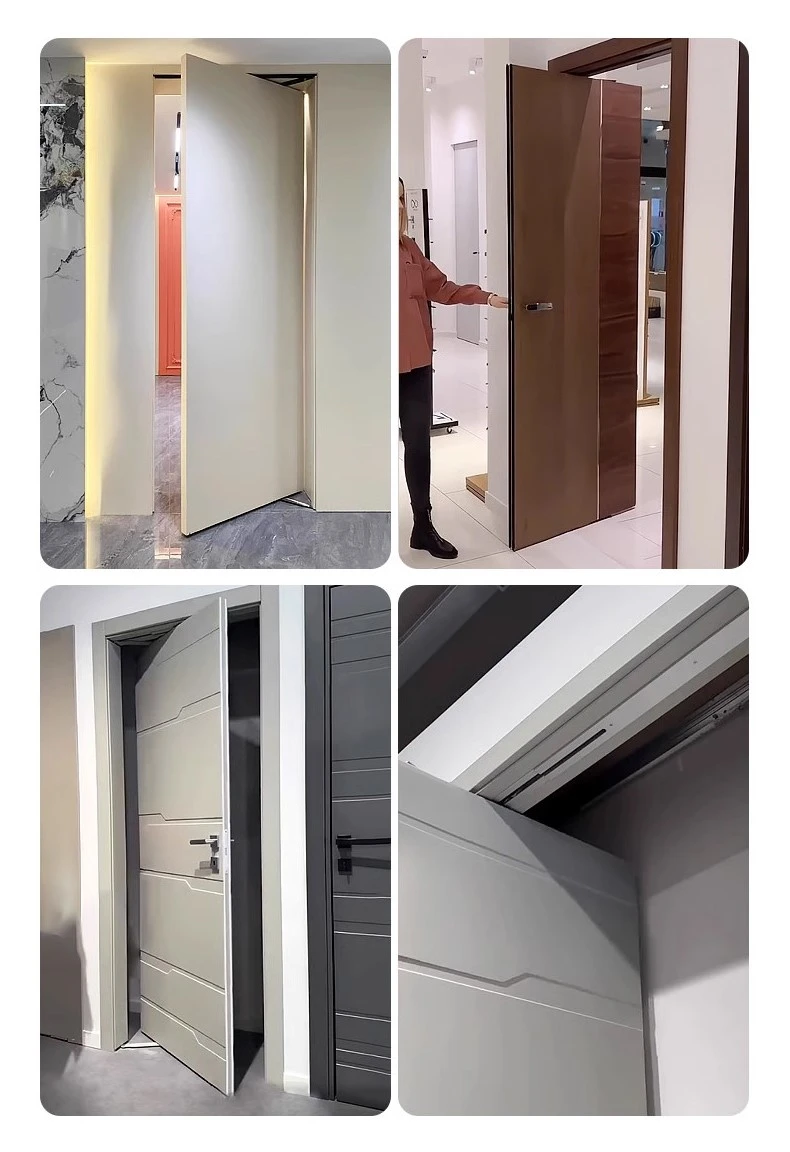

Use cases

Temax Magic Sliding Door Hardware TM036




Temax Magic Sliding Door Hardware TM036


FAQ

Q: Which types of wooden doors is the TM036 system suitable for?

A: It is suitable for solid wood and veneered wooden doors with a thickness of at least 35mm, a width of 850–1100mm, a height not exceeding 2135mm, and a weight not exceeding 70kg.

Q: Can the door open both inwards and outwards?

A: Yes. Temax Magic Sliding Door Hardware supports 180° bidirectional rotation and utilizes a top track to enable a combined rotating and sliding motion, facilitating access from both sides of the door. Please ensure there is sufficient clearance space in the surrounding area before installation.

Q: Does the concealed design affect the soft-close function?

A: No. A hydraulic soft-close mechanism is integrated into the system, preserving the cushioning function while keeping the hardware concealed; combined with silent rollers, it minimizes impact and noise during daily operation.

Q: How can uneven door gaps be adjusted during installation?

A: The door's vertical alignment and gap spacing can be fine-tuned using the multi-dimensionally adjustable pivot hardware. Please follow the product installation instructions for specific adjustment steps.
